A geometrical concept, of which an exact and at the same time quite general definition presents considerable difficulties and is carried out differently in different branches of geometry.

In elementary geometry the concept of a curve is not clearly defined and is sometimes defined as "length without width" or as the "boundary of a surface" . In elementary geometry the study of a curve essentially reduces to consideration of examples (a straight line, an interval, a polygon, a circle, etc.). Since it does not have general methods at its disposal, elementary geometry has gone quite deeply into the study of properties of specific curves (conic sections, certain algebraic curves of higher orders and transcendental curves), using special methods in each case.

In analytic geometry a curve in a plane is defined as a set of points whose coordinates satisfy an equation $ F ( x , y ) = 0 $. Restrictions must be imposed on the function $ F $ so that, on the one hand, the equation should have an infinite set of solutions and, on the other hand, so that this set of solutions does not fill "a piece of the plane" .

An important class of curves comprises those for which the function $ F ( x , y ) $ is a polynomial in the two variables; in this case the curve defined by the equation $ F ( x , y ) = 0 $ is said to be algebraic. Algebraic curves specified by an equation of the first degree are straight lines. An equation of the second degree that has an infinite set of solutions defines an ellipse, a hyperbola, a parabola, or a curve that splits into two straight lines (which may coincide). Algebraic curves defined by equations of higher degrees are considered in algebraic geometry. Their theory acquires great orderliness if the examination is carried out in the complex projective plane. In this case an algebraic curve is defined by an equation of the form

$$ F ( x ^ {1} , x ^ {2} , x ^ {3} ) = 0 , $$

where $ F $ is a homogeneous polynomial in three variables, the projective coordinates of points.

For those branches of mathematics in which the methods of the theory of functions predominate (analysis, differential geometry, etc.) a natural definition of a curve is the specification of it by parametric equations. Thus, in the case of a plane, a curve specified by parametric equations

$$ \tag{1 } x = \phi ( t) ,\ \ y = \psi ( t) , $$

where $ \phi ( t) $ and $ \psi ( t) $ are continuous functions on an interval $ a \leq t \leq b $, is the set of points $ ( x , y ) $ corresponding to all possible values of the parameter $ t $ under the condition that these points are considered in a definite order: If the point $ M _ {1} $ corresponds to the value $ t _ {1} $ and $ M _ {2} $ to $ t _ {2} $, then $ M _ {1} $ is regarded as preceding $ M _ {2} $ if $ t _ {1} < t _ {2} $; points corresponding to distinct values of the parameter are regarded as distinct. The equations $ x = \phi _ {1} ( t _ {1} ) $, $ y = \psi _ {1} ( t _ {1} ) $, $ t _ {1} \in [ a _ {1} , b _ {1} ] $, specify the same curve as equations (1) if there is a homeomorphism $ \lambda ( t _ {1} ) = t $ of the interval $ [ a _ {1} , b _ {1} ] $ onto the interval $ [ a , b ] $, $ \lambda ( a _ {1} ) = a $, $ \lambda ( b _ {1} ) = b $, such that $ \phi ( \lambda ( t _ {1} ) ) = \phi _ {1} ( t _ {1} ) $ and $ \psi ( \lambda ( t _ {1} ) ) = \psi _ {1} ( t _ {1} ) $. Similarly, a curve in an arbitrary topological space $ X $ is defined by a parametric equation of the form $ x = \phi ( t) $, where $ \phi $ is a function of the real variable $ t $, continuous on $ [ a , b ] $, the values of which are points $ x $ of $ X $.

As well as this approach there is another point of view (C. Jordan, 1882) on the definition of a curve by parametric equations: A curve is a set of points of the plane whose coordinates are continuous functions $ x = \phi ( t) $, $ y = \psi ( t) $ of the parameter $ t $ specified on an interval $ [ a , b ] $; now points corresponding to distinct values of the parameter but having the same coordinates are not regarded as distinct, and the set comprising a curve is not regarded as ordered by values of $ t $. This definition can be generalized to any topological space: A set of points of a topological space that is a continuous image of an interval is called a curve in the sense of Jordan.

However, continuous functions $ \phi ( t) $ and $ \psi ( t) $, $ 0 \leq t \leq 1 $, have been constructed so that the set of points whose coordinates are determined by these functions fill the square $ 0 \leq x , y \leq 1 $( see Peano curve). More generally, any locally connected continuum (that is, a continuum each point of which has an arbitrary small connected neighbourhood) is a continuous image of an interval (a theorem of Mazurkiewicz). Thus, not only a square, but also a cube of arbitrary dimension and even the infinite-dimensional Hilbert cube are continuous images of an interval.

The above-said shows that a curve cannot be defined as a continuous image of an interval if one does not impose additional restrictions on the mapping. Thus, in differential geometry these restrictions are given by imposing conditions for the existence of derivatives of various orders of the functions that occur in the parametric definition of a curve. On the other hand, there are continua that can naturally be regarded as curves but which, not being locally connected, are not continuous images of an interval. Such, for example, is the continuum defined by the conditions: $ y = \sin ( 1 / x) $, $ 0 < x \leq 1 $; $ x = 0 $, $ - 1 \leq y \leq 1 $( Fig. a).

Figure: l059020a

A more general definition of a curve for the case of a plane was given by G. Cantor in the 1870's in connection with the creation of the theory of point sets. A planar continuum such that in any neighbourhood of each point of it there are points of the plane that do not belong to the continuum is called a Cantor curve. An important example of a Cantor curve is the Sierpiński carpet, constructed as follows. A square $ Q $ of sides 1 is divided into nine equal squares by straight lines parallel to its sides, and all the interior points of the central square are removed (Fig. b, $ n = 1 $). The same is done with each of the remaining eight squares of the first rank, and one obtains 64 squares of the second rank (Fig. b, $ n = 2 $). Continuing the process for all natural numbers $ n $, at the $ n $- th step one obtains $ 8 ^ {n} $ squares of the $ n $- th rank with sides $ 1 / 3 ^ {n} $. The intersection of the sets obtained in this way is the Sierpiński carpet (Fig. b).

Figure: l059020b

Whatever Cantor curve $ L $ one has, it can be topologically imbedded in the Sierpiński carpet $ S $, that is, in $ S $ there is a continuum $ L ^ \prime $ homeomorphic to $ L $. The Sierpiński carpet is a locally connected continuum and so it is a continuous image of an interval.

In topology one uses the concept of a curve introduced in 1921 by P.S. Urysohn, which is more general (but not excessively so). The definition of a curve is stated as follows: A curve is a one-dimensional continuum, that is, a connected compact metric space $ C $ each point of which has an arbitrary small neighbourhood with a boundary of dimension zero. In other words, for any $ \epsilon > 0 $ the space $ C $ can be represented as the sum of finitely many closed sets of diameter less than $ \epsilon $ having the property that no three of these sets have a common point. The Sierpiński carpet satisfies this definition of a curve, so any Cantor curve is also a curve in the sense of Urysohn. Conversely, if a planar continuum is a curve in the sense of Urysohn, then it is a Cantor curve. The definition of a curve given by Urysohn is intrinsic: It is characterized only by properties of the space $ C $ itself and does not depend on whether this space is considered in itself or as a subset of another topological space.

There are curves that are not homeomorphic to any subset of the plane. Such, for example, is the curve lying in the three-dimensional space and consisting of the six edges of a tetrahedron and the four segments joining a point of the space not lying on one of its faces to its vertices (Fig. c).

Figure: l059020c

However, any curve (in the sense of Urysohn) is homeomorphic to a subset of the three-dimensional Euclidean space (Menger's theorem). A continuum $ M $ having the property that whatever the curve $ C $ there is a subcontinuum $ C ^ \prime $ of $ M $ homeomorphic to $ C $, is constructed as follows. A cube $ K $ of edges 1 is divided by planes parallel to its faces into 27 equal cubes. From $ K $ one removes the central cube and all cubes of this subdivision adjacent to it along two-dimensional faces. One obtains a set $ K _ {1} $ consisting of the remaining 20 closed cubes of the first rank. Doing exactly the same with each cube of the first rank, one obtains a set $ K _ {2} $ consisting of 400 cubes of the second rank (Fig. d). Continuing this process indefinitely, one obtains a sequence of continua $ K _ {1} \supset K _ {2} \supset \dots $ the intersection of which is a one-dimensional continuum $ M $, called the Menger universal curve.

Figure: l059020d

In the investigation of curves an important role is played by the concept of the ramification index. A curve $ C $ at a point $ x $ has ramification index $ \mathfrak m $ if for any number $ \epsilon > 0 $ there is an open set $ U $ of diameter less than $ \epsilon $ whose boundary is a set of cardinality at most $ \mathfrak m $, but for any sufficiently small $ \epsilon ^ \prime > 0 $ the boundary of any open set, containing $ x $, whose diameter is less than $ \epsilon ^ \prime $ has cardinality not less than $ \mathfrak m $. Points of a curve are classified with respect to their ramification index as follows.

1) Points with ramification index $ n $, where $ n $ is a natural number.

2) Points of unbounded ramification index $ \omega $. (A point $ x $ of a curve $ C $ has ramification index $ \omega $ if for any number $ \epsilon > 0 $ there is an open set, containing $ x $, with diameter less than $ \epsilon $ and whose boundary consists of a finite set of points, and if for any natural number $ n $ there is a number $ \epsilon _ {n} > 0 $ such that the boundary of any open set containing $ x $ and having diameter less than $ \epsilon _ {n} $ consists of at least $ n $ points.)

3) Points of countable ramification index $ \aleph _ {0} $.

4) Points of continual ramification index $ \mathfrak c $.

A point of a curve $ C $ of ramification index larger than two is called a ramification point; a point with ramification index one is called an end point.

Examples. a) At all its interior points an interval has ramification index equal to two; the ramification index of each end of the interval is equal to one. b) At each of its points a circle has ramification index two. c) A curve consisting of $ n $ rectilinear intervals starting from one point $ O $ has ramification index $ n $ at $ O $. d) A curve consisting of intervals $ O a _ {1} \dots O a _ {n} \dots $ starting from the origin $ O $ and having lengths $ 1 / 2 \dots 1 / {2 ^ {n} } \dots $ and making angles with the $ x $- axis respectively equal to $ \pi / 2 \dots \pi / {2 ^ {n} } \dots $ has unboundedly increasing ramification index $ \omega $ at $ O $( Fig. e).

Figure: l059020e

Figure: l059020f

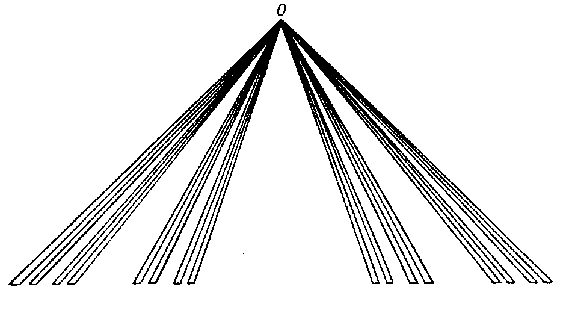

e) A curve consisting of the interval $ O a _ {0} $ of length $ 1 $ and intervals $ O a _ {1} \dots O a _ {n} \dots $ of length $ 1 $ starting from $ O $ and making angles with $ O a _ {0} $ respectively equal to $ \pi / 2 \dots \pi / {2 ^ {n} } \dots $ has countable ramification index $ \aleph _ {0} $ at each point of $ O a _ {0} $( Fig. f). f) A curve consisting of intervals joining $ O $ to all points of a Cantor set lying on the interval $ 0 \leq x \leq 1 $, $ y = 0 $, has continual ramification index $ \mathfrak c $ at each of its points (Fig. g).

Figure: l059020g

g) The Sierpiński carpet also has continual ramification index at each of its points.

If a curve has no ramification points at all, that is, if at each point of the curve the ramification index is equal to 1 or 2, then this curve is either a simple arc (the topological image of an interval) or a simple closed curve (the topological image of a circle). If the ramification index of a curve at all points is equal to two, then it is a simple closed curve, and if a curve that does not have ramification points has end points (it turns out that there are invariably two of them), then it is a simple arc. If a curve has only finitely many ramification points and the ramification index of each of them is also finite, then such a curve can be split into finitely many simple arcs having no common points except their end points.

A circle is the only curve all points of which have the same finite ramification index 2; there are no other curves having the same finite ramification index at all points, and if all points of a curve $ L $ have ramification index greater than or equal to $ n $, then there is a point on $ L $ with ramification index greater than or equal to $ 2 n - 2 $; for any natural number $ n $ there is a curve consisting only of points having ramification index $ n $ and $ 2 n - 2 $( Urysohn's theorem). An example of a curve consisting only of points with ramification index 3 or 4 is constructed as follows.

Figure: l059020h

In an equilateral triangle with sides 1 one draws the three lines joining the midpoints, and from it one removes the interior points of the triangle formed by them. With each of the remaining three triangles of the first rank one carries out a similar operation, as a result of which one obtains nine triangles of the second rank. Proceeding in the same way with these, one obtains 27 triangles of the third rank, etc. for every natural number $ n $. The intersection of the sets obtained as a result of these operations is a curve $ C $( Fig. h). A curve consisting of points with ramification index 3 or 4 consists of two continua $ C _ {1} $ and $ C _ {2} $, each of which is homeomorphic to $ C $ and which have no points in common other than those corresponding to the vertices of the basic triangle of the continuum $ C $.

There are also curves that have unbounded ramification index, countable ramification index and continual ramification index at all points.


[1] P.S. Aleksandrov, "Einführung in die Mengenlehre und die Theorie der reellen Funktionen" , Deutsch. Verlag Wissenschaft. (1956) (Translated from Russian) MR0168706
[2] K. Kuratowski, "Topology" , 2 , Acad. Press (1968) (Translated from French) MR0259835 Zbl 0849.01044 Zbl 0528.54033 Zbl 1081.54501 Zbl 0383.54001 Zbl 0323.54010 Zbl 0274.54007 Zbl 0267.54002 Zbl 0247.54001 Zbl 0163.17002 Zbl 0158.40901 Zbl 0158.40802 Zbl 0148.42801 Zbl 0104.27402 Zbl 0098.24110 Zbl 0137.15604 Zbl 0041.09604 Zbl 0041.09603 Zbl 0008.13202 Zbl 56.0517.04
[3] K. Menger, "Kurventheorie" , Teubner (1932) MR0221475 MR1549694 Zbl 0005.41504 Zbl 58.1205.02
[4] A.S. Parkhomenko, "What is a curve?" , Moscow (1954) (In Russian)
[5] P.S. Urysohn, "Works on topology and other areas of mathematics" , 2 , Moscow-Leningrad (1951) (In Russian)
[6] F. Hausdorff, "Grundzüge der Mengenlehre" , Leipzig (1914) (Reprinted (incomplete) English translation: Set theory, Chelsea (1978)) MR1034865 MR0979016 MR0031025 Zbl 1175.01034 Zbl 45.0123.01


A "curve in the sense of Jordan" (that is, a continuous image of the unit interval $ I $) is also called a Peano continuum. It should not be mixed up with the notion of a Jordan curve (a space homeomorphic to the circle, also called a simple closed curve).

The theorem of Mazurkiewicz mentioned above is generally known as the Hahn–Mazurkiewicz theorem [a1], 6.3.14.

Sierpiński's carpet is also called Sierpiński's universal curve.

The curve in Fig. hwas constructed by W. Sierpiński [a3].


[a1] R. Engelking, "General topology" , Heldermann (1989) MR1039321 Zbl 0684.54001
[a2] R. Engelking, "Dimension theory" , North-Holland & PWN (1978) pp. 19; 50 MR0482696 MR0482697 Zbl 0401.54029
[a3] W. Sierpiński, "Sur un courbe dont tout point est un point de ramification" C.R. Hebdomaires Acad. Sci. Paris , 160 (1915) pp. 302–305 Zbl 45.0628.02
[a4] L. Blumenthal, K. Menger, "Studies in geometry" , Freeman (1970) (Translated from German) MR0273492 Zbl 0204.53401
[a5] J.L. Coolidge, "A treatise on algebraic plane curves" , Clarendon Press (1931) MR0120551 MR1522528 Zbl 57.0820.06
[a6] A.D. [A.D. Aleksandrov] Alexandrov, Yu.G. Reshetnyak, "General theory of irregular curves" , Kluwer (1989) (Translated from Russian) MR1117220 Zbl 0691.53002
